Quick Start Guide - Register Database

Previous topic Next topic

For using the database monitoring capabilities, you first have to register a new database entry beneath a server entry. Select the server/database node and click the Register/Duplicate Database button in the toolbar of section 1 in the Main Screen.

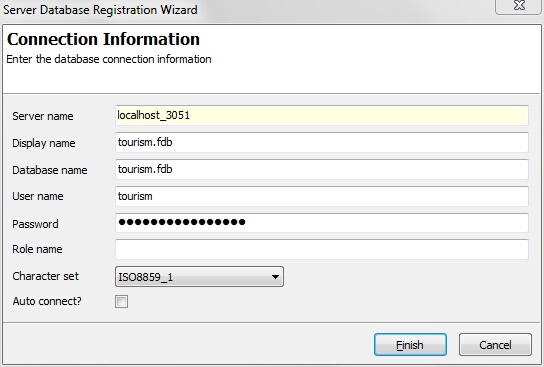

fbtm_register_database_wizard



Enter the following information:



Display name: This is the string shown in the list of databases.
Database name: Database path or alias.
User name: Name of the Firebird user you want to use for the database attachment.
Password: The user's password. The password will be stored encrypted in the FB TraceManager 2 database to suppress misuse in case someone is connecting to the FB TraceManager 2 database directly, e.g. via third-party tools like isql, Database Workbench, FlameRobin etc.
Role name: Role name used for the connection.
Character set: Character set used for the connection.
Auto connect: Select this option if you want to connect to a particular database upon program start automatically.



The user name and password are optional to support Firebird trusted authentication on Windows platform.





What's next: The next QSG section Register Project will show you how to register a project.
