Program configuration settings can be customized with the Configuration Wizard, which is accessible via the Settings menu item in section 6 of the Main Screen.



You don't have to walk through the entire Configuration Wizard. You can click Finish to persist the settings at any time.

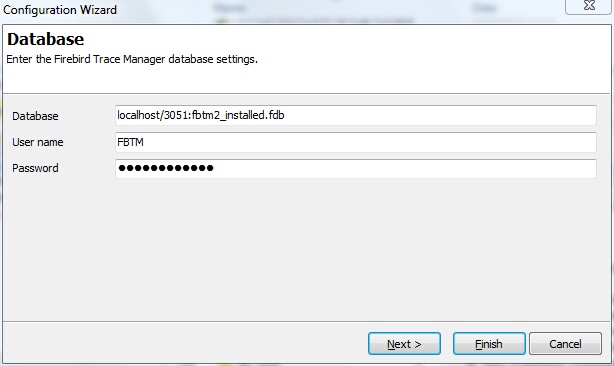

Step 1 - Database Settings



fbtm_configuration_wizard_1



Here you can change the path to the FB TraceManager 2 database and the user/password combination. So, if you want to use the FB TraceManager 2 database with a regular Firebird 2.5 or higher server, change the Database entry accordingly.



Hint: Database settings take affect after re-starting FB TraceManager 2.

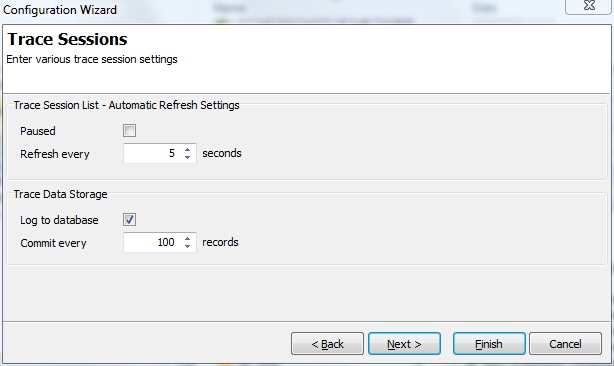

Step 2 - Trace Sessions



fbtm_configuration_wizard_2



Here you can set the default behaviour for re-fetching the trace session list and for the trace data storage mechanism. These are initial settings when the logged in Windows user is using FB TraceManager 2 the first time. They will be overwritten once the dialogs, where these settings are used, have been called at least once. These are connecting to a server fetching the trace session list and when starting a new trace session.

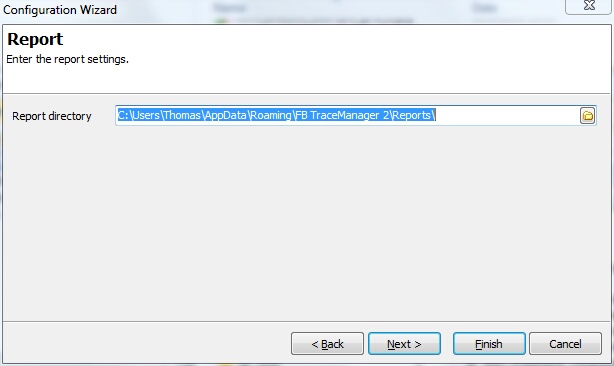

Step 3 - Report



fbtm_configuration_wizard_3



Define the default path to the location of pre-defined report files.

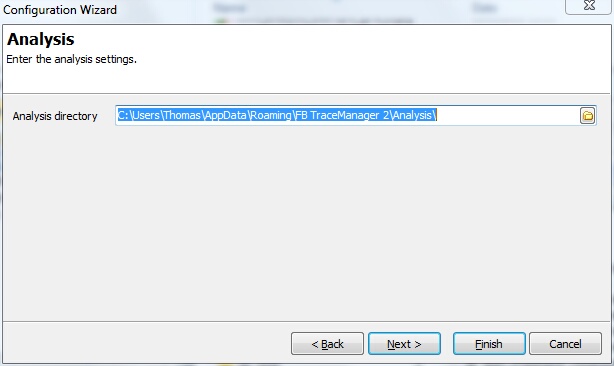

Step 4 - Analysis



fbtm_configuration_wizard_4



Define the default path to the location of pre-defined analysis schema files.

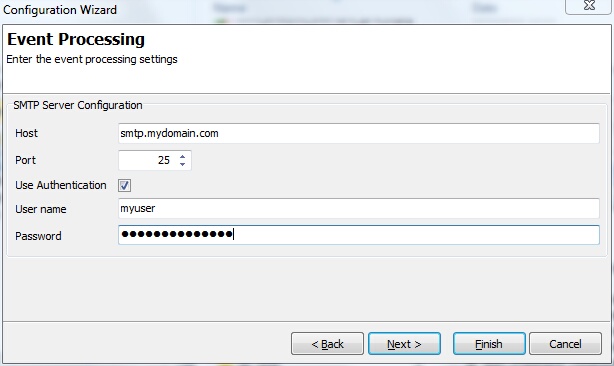

Step 5 - Event Processing



fbtm_configuration_wizard_5



Specify the SMTP server settings, if you intend to use the OnSendEmail event rule in the Event Processing module.

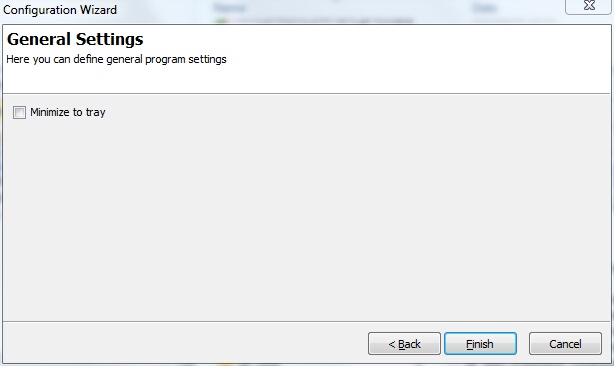

Step 6 - General Settings



fbtm_configuration_wizard_6



Select the Minimize to tray option if the program icon should be moved to the Windows notification area when the main windows is minimized.
