Event Processing - Register Event Rule

Previous topic Next topic

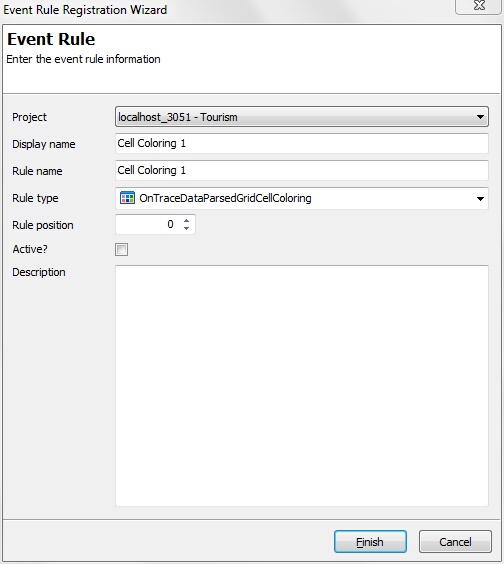

To create a new event rule, select the project node in the Rules area and then click the New Rule button. This will open the Event Rule Registration Wizard dialog.



fbtm_eventprocessing_eventrule_wizard_1



Enter the following information:



1.Project: The project (server name - project name) the event rule applies to. You can select a project when creating or duplicating an event rule. When duplicating an event rule, this means, you can take an event rule from a project and create a copy of that in another project. For editing an existing event rule, the drop-down box is read-only.
2.Display name: This is the text of the node shown in the tree view.
3.Rule name: A logical name of the rule, which might get used in some way in later versions of FB TraceManager 2.
4.Rule type: Select the rule type you want to use. The rule type defines what type of action should be executed upon your user-defined conditions. The rule type directly defines the available functions and variables for writing the script code. Currently, the following rule types are supported:

- OnTraceDataParsedGridCellColoring: The event rule code is executed when the background color for cells in the parsed trace data grid are applied.
- OnTraceDataParsedGridCellFormatting: The event rule code is executed when the font for cells in the parsed trace data grid are applied (e.g: bold, italic, underline, strike out).
- OnShowAlertWindow: The event rule code is executed for each cell of a parsed trace data row and allows to show a notification window.
- OnSendEmail: The event rule code is executed for each cell of a parsed trace data row and allows to send an email. Mandatory SMTP server settings can be found in the program Settings.
- OnExecuteApplication: The event rule code is executed for each cell of a parsed trace data row and allows to execute an application by it's file name with optional parameters.
- OnPlaySound: The event rule code is executed for each cell of a parsed trace data row and allows to play a .WAV file or a Windows system sound.

5.Rule position: The set of available rules are applied/processed in ascending order of the position value.
6.Active: Check/uncheck the checkbox to activate/deactivate the rule. Only activated rules are evaluated and executed.
7.Description: An optional text for describing the rule in more detail.





Click Finish to finalize the creation process.





What's next: Once an event rule is created, you are ready to write the script code. This will be discussed in the next section Writing Rule Script Code.
