PL/SQL Debugger

Previous  Index  Next  How To Use

Database Workbench comes with a Stored Routine Debugger tool. You can reach this tool by using the context menu in the Database Navigator on any Stored Procedure, Stored Function or Package and selecting Debug Procedure, Debug Function or Debug Routine in Package. In the case of a package, the context menu will show the routines in the package in a submenu and you should click a specific routine.



Read the generic topic on the debugger first.

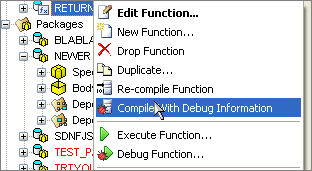

With Oracle, the server side debugging module needs to have "debug information" available, each routine you want to debug and step through line by line needs to be compiled with debug information. Database Workbench let's you compile a routine with debug information by using the context menu and select Compile With Debug Information.



Compile With Debug Information



Database Workbench will automatically compile the routine that you will be debugging as the most "outer" routine with debug information as soon as you start the debugger, routines you want to Trace Into, you need to compile with debugging information yourself. Obviously, when compiling a package with debug info, the complete package will contain the debugging information.

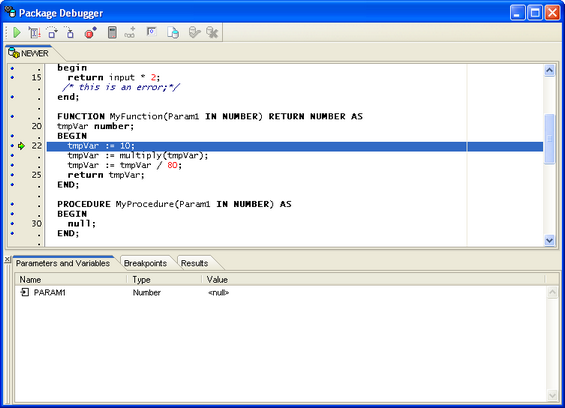

When debugging a package, Database Workbench will display the package-body in the code window. If you use Trace Into to a subroutine in the package, there will not be a new tab opened, but the "current line" will jump to another routine in the same window.



Debugging a package



Below is an example screenshot of a trace into action. The MyFunction routine calls the Multiply routine.



Traced into Multiply from the routine MyFunction



Note:

The Oracle debugger in Database Workbench does not support the following debug windows: Watches, Last Statement and Messages.

The Oracle debugger doesn't pick up variable names for a routine, you can manually define them by selecting a variable name in the code window, using the context menu and selecting Add Variable. This will create an entry in the Parameters & Variables debug window.
