Building an ADO Connection String

Previous  Index  Next  How To Use

In some tools (eg: Data Pump or ADO/ODBC Explorer), you can create an ADO Connection String, this string holds the different options and database details for the ADO driver to connect to a datasource.



Because every driver is different, the options are different as well. But, there are also common properties and whenever you can build a connection string, Database Workbench will show you a wizard to do it.



There are two ways to connect to an ADO datasource, by using a Microsoft Data Link File (.udl, more or less a previously created connection string saved to a file) or by building the string at that very moment.

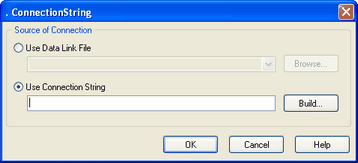

The Connection String dialog



If you press Build, the following wizard is shown.

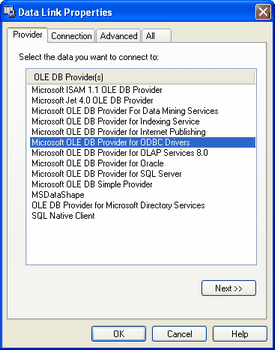

Connection String Wizard, select a Provider



At the first page, you have to select the type of data source and the provider (= driver) you will be using for the data. What is shown if you click Next depends on the driver and is different for each driver.



Below is a couple of examples for different drivers (click to expand).

Microsoft Jet Driver (eg: MS Access) Microsoft Oracle Driver Microsoft SQL Server Driver



If you are satisfied with your settings, click OK to accept the connection string and continue.
